14 Port Industrial Gigabit Ethernet Switch - Managed, Extreme Temperature Resistant for Harsh Environments - Ideal for Factory Automation, Outdoor Networking & Industrial IoT Applications

Product Description

Black Box Ethernet Switch
Multiple ports for flexibility.

This switch has ten 10/10/1000-Mbps RJ-45 copper ports and four multi-speed SFP ports for uplinks. It offers full wire-speed forwarding rates, auto-negotiates for network speeds, and Auto-MDI/MDI-X, eliminating the need for crossover cables.

Maximize uptime.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. And you'll eliminate the need to send IT technicians on site - thus lowering costs.

The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.

The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.

Fast failovers.
The switch gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol. It offers a 20 millisecond or less failover.

Extreme applications.
Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:

• Security and surveillance, particularly to backhaul IP security camera data.
• Military applications, especially in ships and other vehicles.
• Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
• Oil and gas fields or remote equipment monitoring and control.
• Building automation for controlling HVAC and lighting systems.

Installation options.
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-12, MDR-40-24, MDR-40-48, and SDR-240-48) are sold separately. The switch also includes a serial cable (RJ-45/DB9) for the console connection.

• DIN rail or wall mount.


• Manage through a Web interface, SNMP, or command-line interface (CLI).


• IP30-rated housing is also rated for shock and vibration protection.


• Dual DC power inputs for redundancy.


• Rated for extreme temperatures of -40 to +75° C.


• Managed switch supports LACP, Spanning Tree, and ring fail-over for redundancy and resiliency.

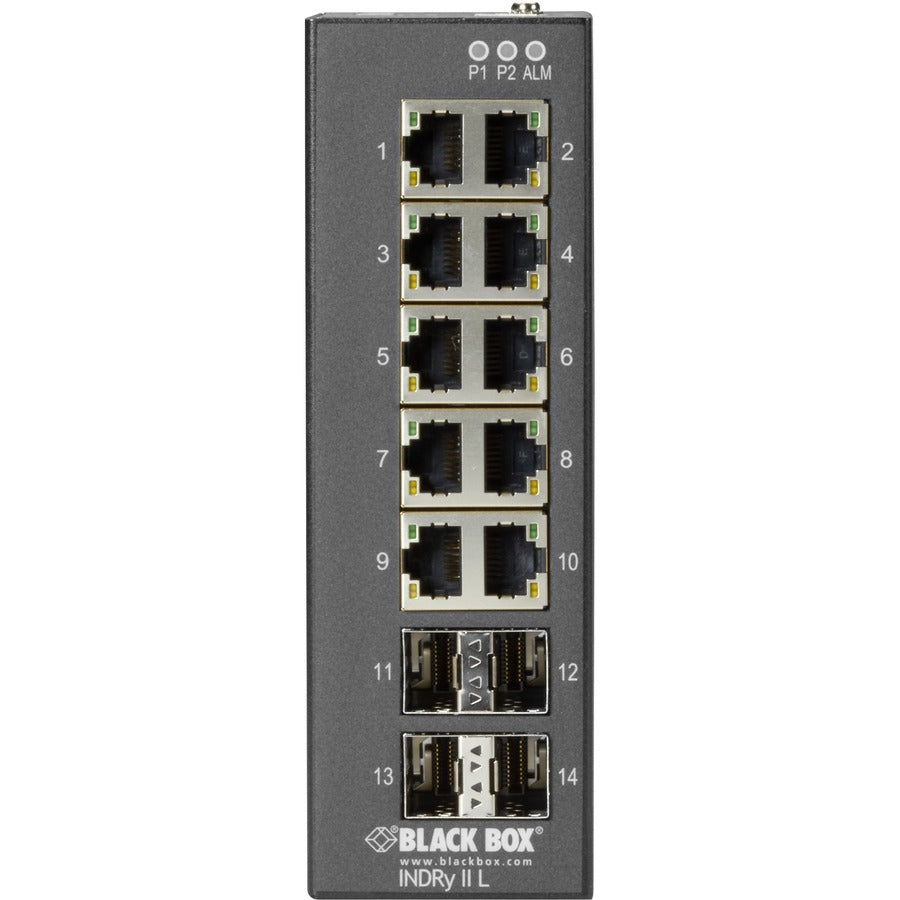

• Provides ten 10/100/1000-Mbps RJ-45 ports and four multispeed SFP slots.

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: Black Box
Form Factor: Panel-mountable
Manufacturer: Black Box Corporation
Product Name: Ethernet Switch
Manufacturer Part Number: LIG1014A
Manufacturer Website Address: http://www.blackbox.com
Package Contents:

• Ehernet Switch
• (1) Cable RJ-45 to DB9
• Din-rail mounting material
